WAX INJECTION MACHINE

WAX INJECTION MACHINE

STANDARD MACHINE FEATURES FOR ALL MODELS of WAX INJECTION MACHINE:

  • C-Frame press
  • Touch operation
  • Paste Wax Injection
  • 5 zone Temperature control
  • Auto Positioning horizontal nozzle
  • T- slots for die clamping
  • Hydraulic pattern ejector
  • Water cooled Platens
  • Nozzle strike safety
  • Metered Injection
  • Self Diagnostics
  • Injection Counter
  • Home button
  • Power saver feature
12Ton Wax Injector

12Ton Wax Injector

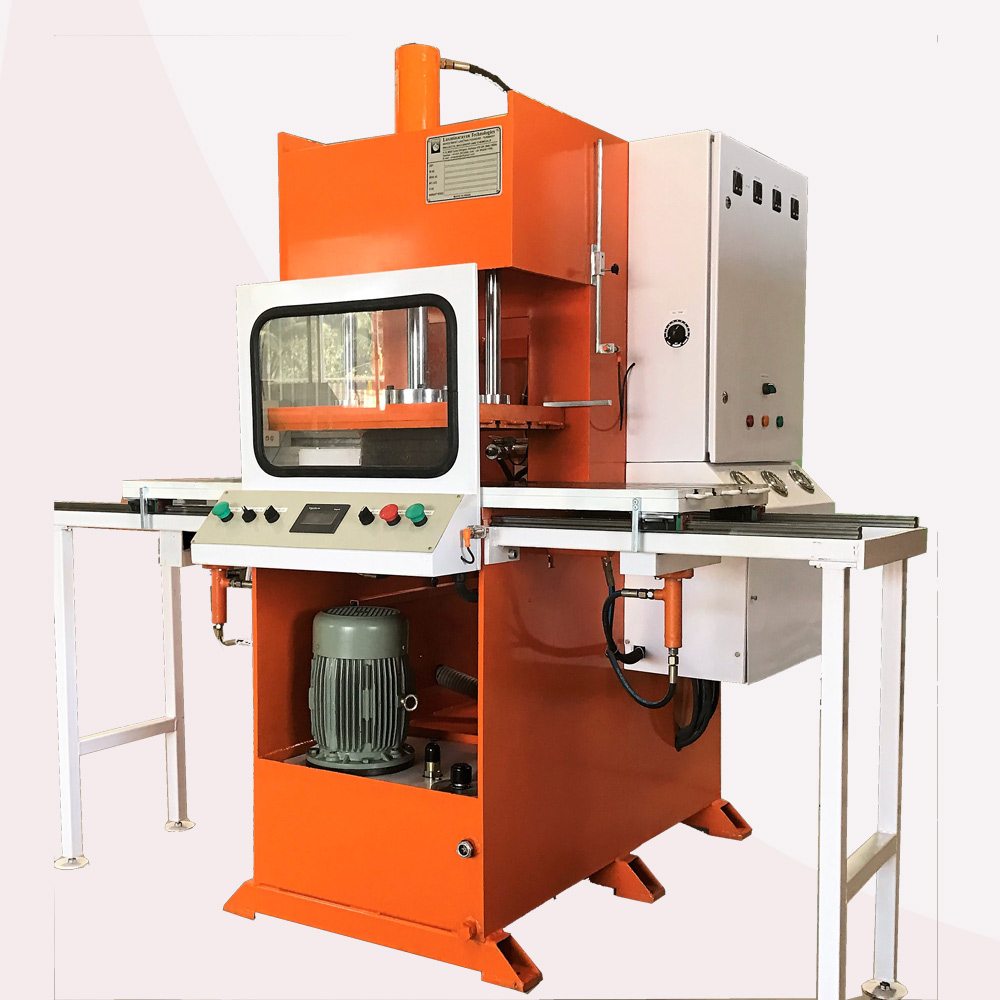

12Ton Wax Injector with Double Shuttle Table

12Ton Wax Injector with Double Shuttle Table

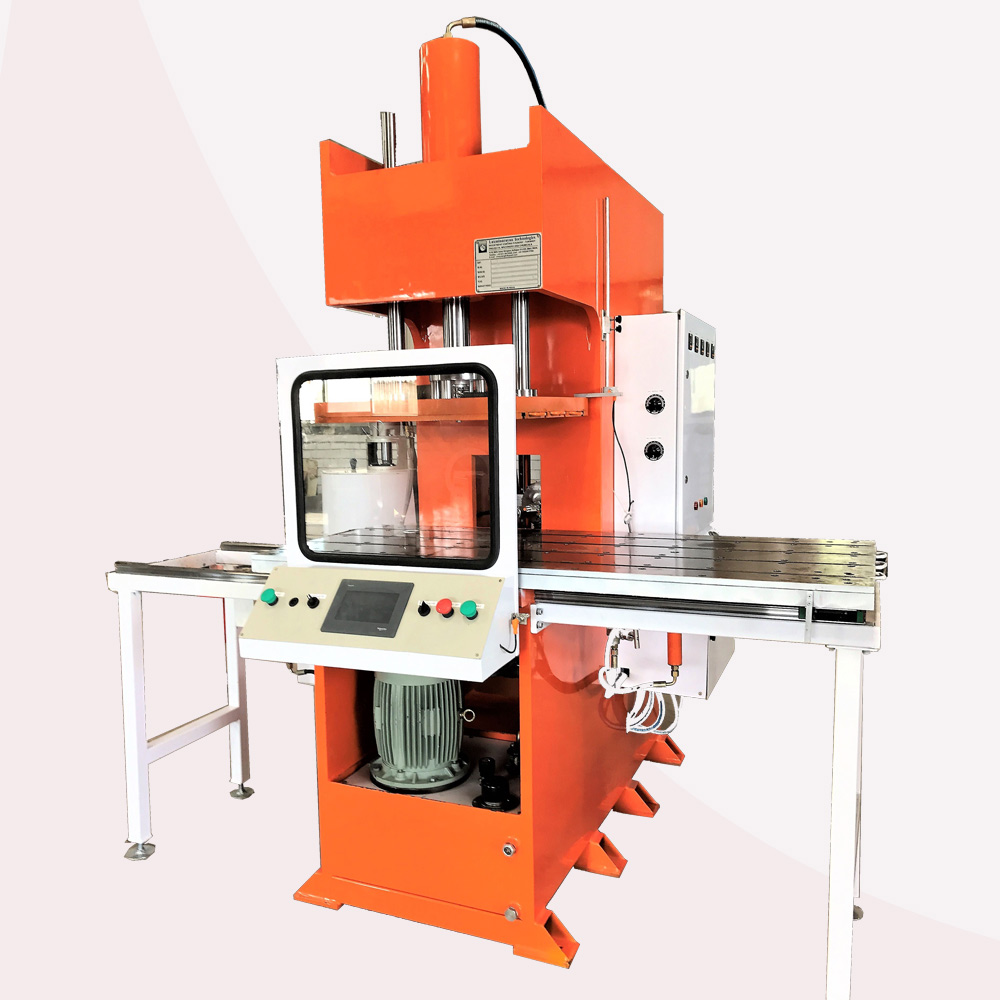

35Ton Wax Injector with Double Shuttle Table

35Ton Wax Injector with Double Shuttle Table

OPTIONAL ADDONS :

  • Double Shuttle Table
  • Vertical injection Nozzle
  • Digital Hydraulics for time/volume based injection
  • Wax Slab/ Drip melter
  • Jib Crane
  • Coolant chiller & circulation pump

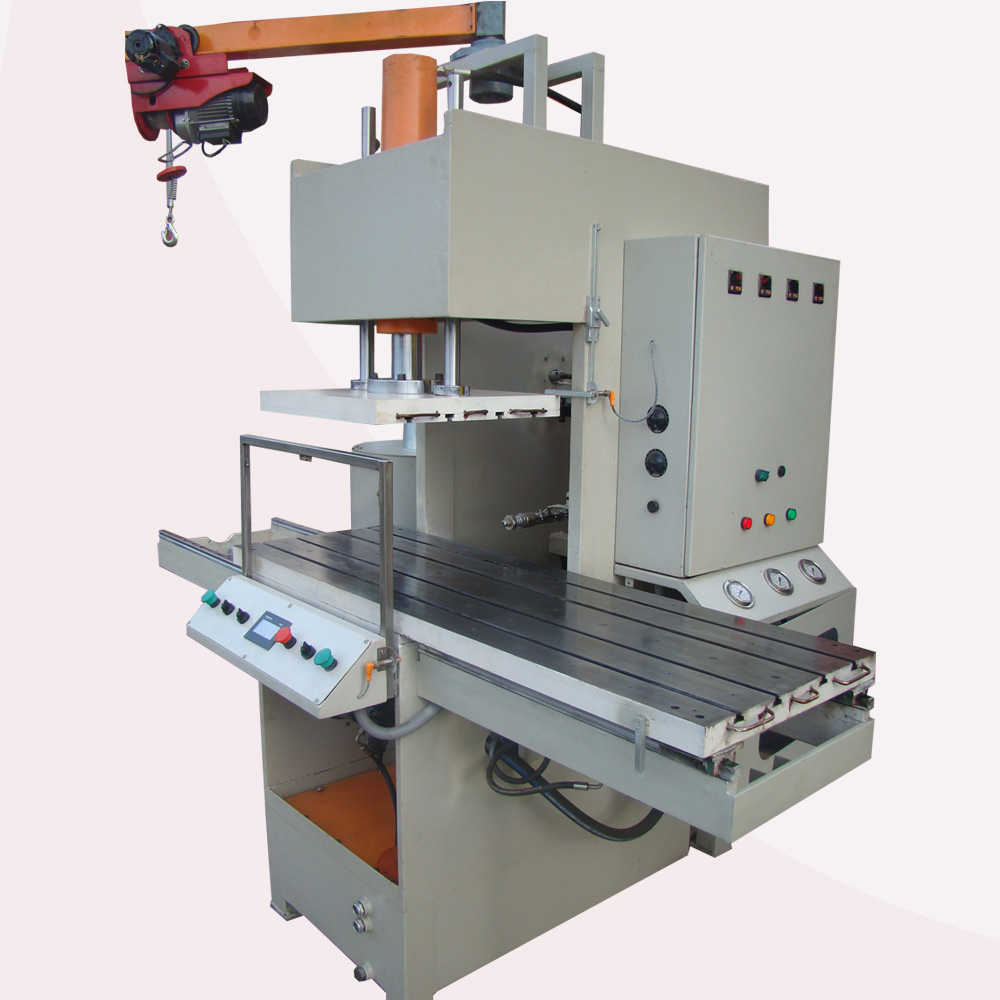

20Ton Wax Injector with Double Shuttle Table & Jib Crane

20Ton Wax Injector with Double Shuttle Table & Jib Crane

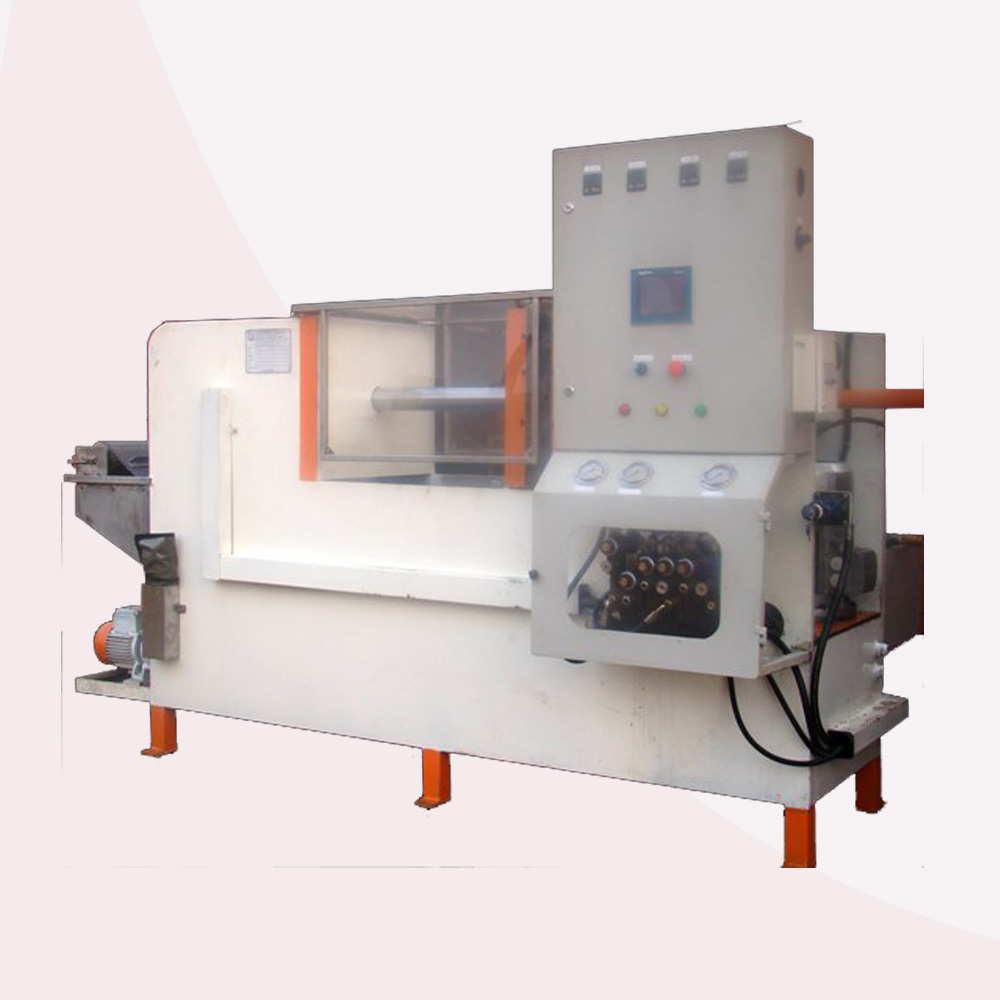

20Ton Automatic Wax Injector

20Ton Automatic Wax Injector
